Pure Hardware Fiber Optic USB Extender For PicoScope Oscilloscopes 3000

USB to Fiber Extender for PicoScope 3000

The Fiber Optic Extender is designed for Picoscope USB interface Oscilloscopes. The device includes a transmitter(device-side) and a receiver(host-side), which can extend the SuperSpeed USB 3.0 to a remote location over a 1 or 2-core fiber cable, max distance of 250m.

Feature

• Max extension distance 200m.
• plug and play, no driver needed, pure hardware design
• compatible with all operating systems,
• Duplex/Single LC fiber connecter
• Support USB3.0 SuperSpeed up to 5Gbps, USB 3.0 Type A Receptacle
• device-side Compatible with USB3.0, USB 2.0, and USB 1.1
• U3E version support all Picoscope USB interface Oscilloscope

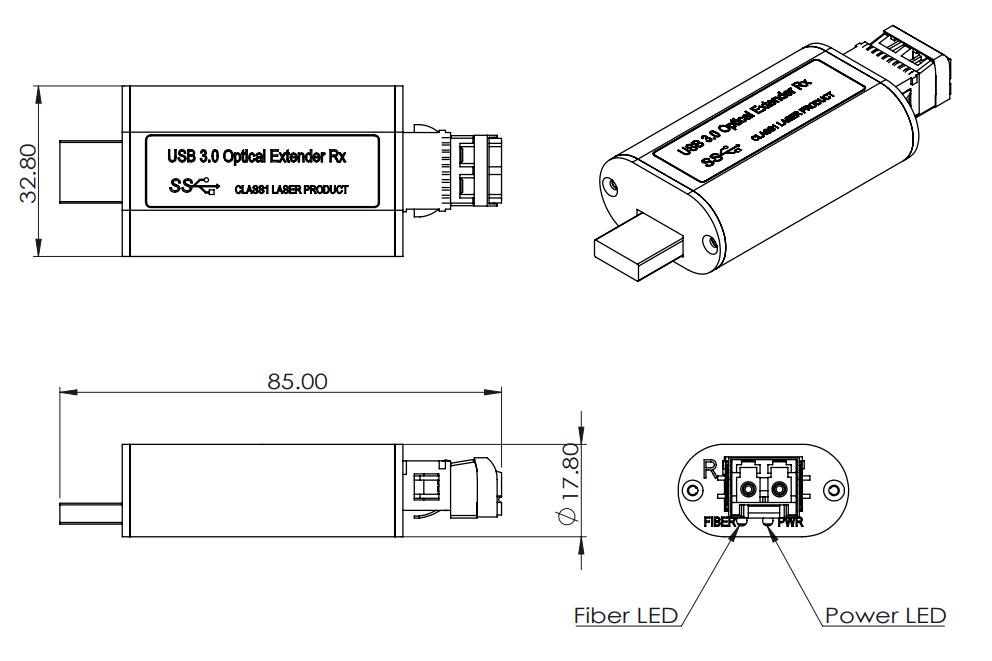

Panel diagram:

Computer side (Receiver)

Device side (Transmitter)

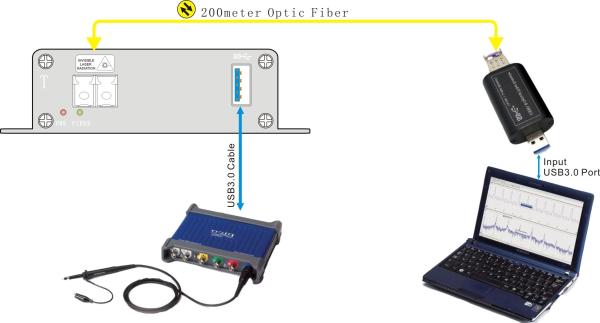

Application diagram:
