HDMI Output SDI Fiber Extender TV Production Live Streaming And Camera Accessories

SDI to fiber Extender with HDMI output

FEATURES

· 1-channel video and audio transmission of digital video signal over optic fiber

· Handles pathological pattern

· Automatic cable equalization to ensure signal integrity

· Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

· Support signal type: 270Mbit/s to 3Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M standards

·Receiver with SDI and HDMI output

· Long transmission capability of at least 10 km(6.2 miles)

· Terminal block power input for industrial application

·Supports hot swapping and hot plugging

·Simplex LC/PC single-mode optical connection

DESCRIPTION

The SDI series fiber video converter is an ideal and economical solution for broadcasting or surveillance applications. It receives one SDI electrical input, and perfectly converts the electrical SDI signal to single mode optic SDI signal. It supports transmission images of SDTV (143-540Mbps), HDTV (1.485Gbps), and HDTV (3Gbps, 1080p60).

Both transmitter and receiver provide equalizing and reclocking at the input unit in order to reconstruct the signal for consistent quality. Besides, with advanced fiber technology, SDI can easily pass pathological patterns to prove its complete transmission.

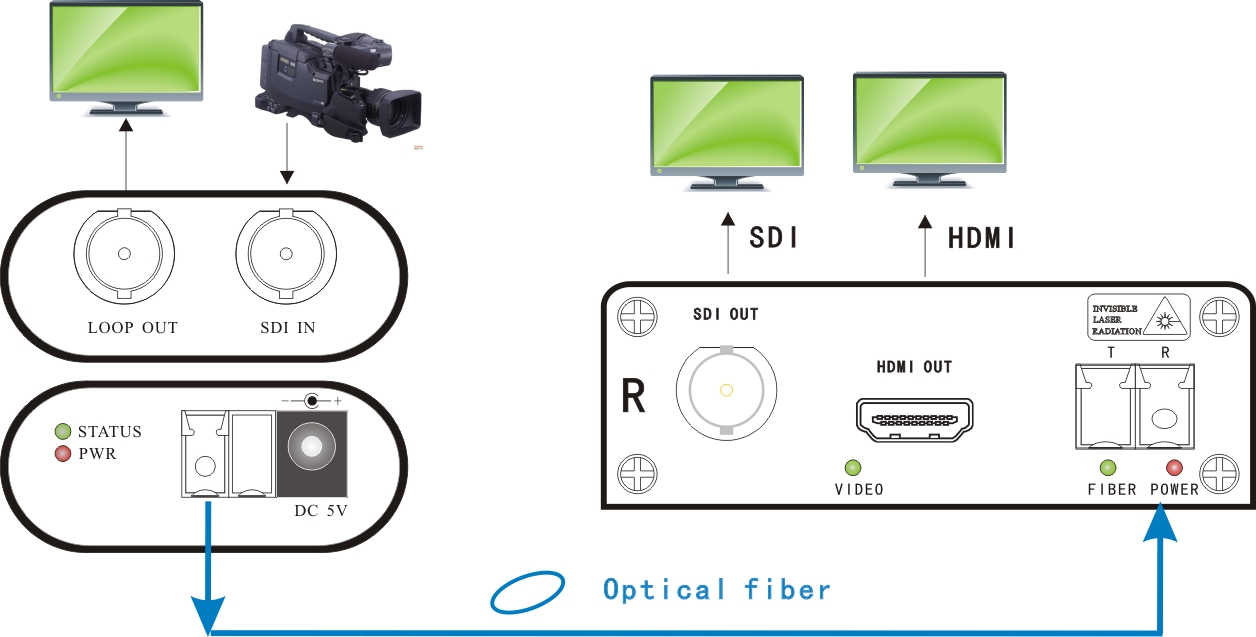

PaPPanel And Connection Graphs
